The Precision Raceworks B58 Port Injection kit with flex fuel compatibility is a necessity to safely and sufficiently support the power levels anyone needing additional fueling. This kit is capable of providing supplemental fueling to all BMW's and Supra equipped with B58 engine (see fitment guide for full details). ( A90 , A91 , Supra , BMW )
Simply pick up this kit and pair it with your favorite injector controller and you are ready to go! Our favorite injector controller is the Motiv Re|Flex which is compatible with all B58 cars and is the industry standard which is why we offer it with this kit.

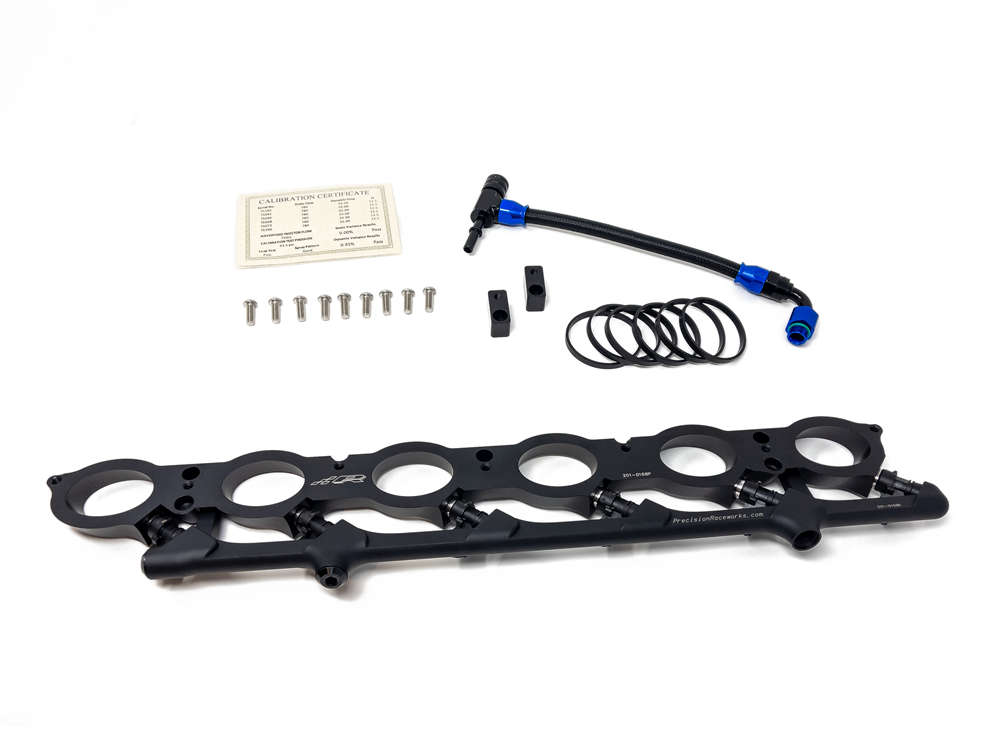

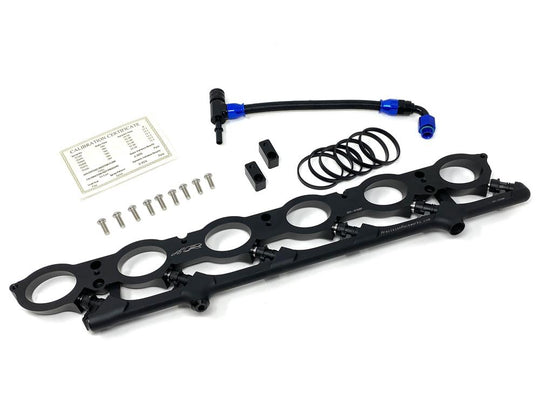

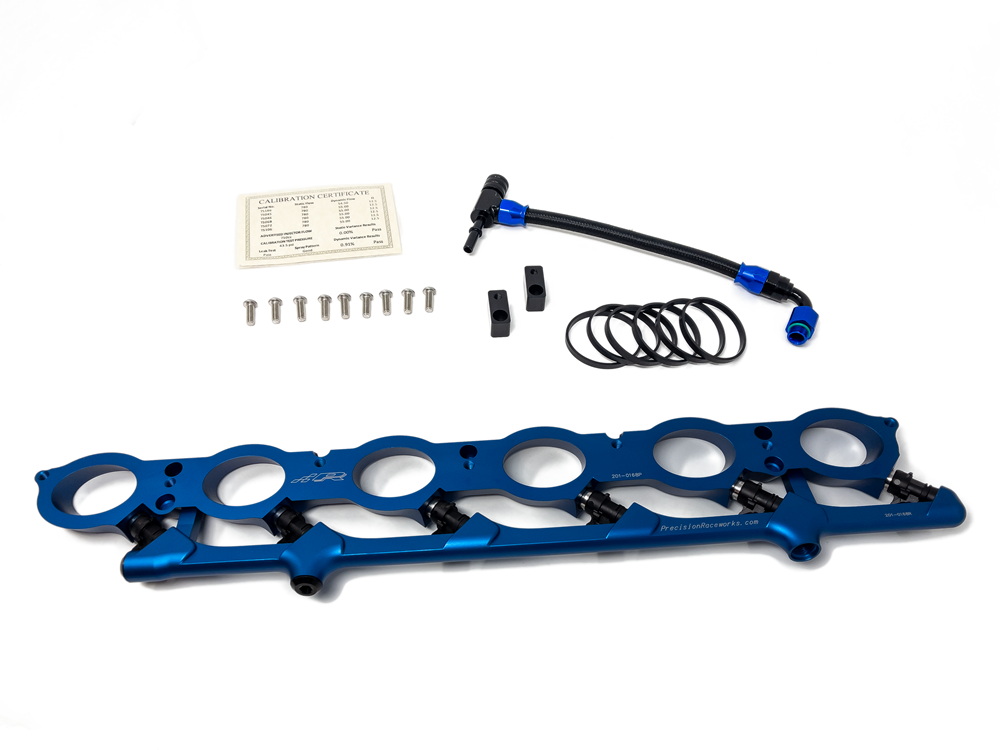

The complete kit integrates seamlessly into your car like it left from the factory with it installed; you can barely even see the kit once the car is assembled! This kit includes everything needed to add multi-port injection and is 100% e85 compliant. We include new genuine Bosch Motorsport injectors which are flow matched both static and dynamic by an outside lab to industry leading requirements. A Detailed certificate of conformance and genuine Bosch product certificate is included with each kit giving you all flow data needed for optimal tuning.
Don’t be tricked into thinking all port injection kits are equal, the Precision Raceworks is the only port injection kit currently where all 6 injectors have even fuel distribution for each cylinder. Additionally this kit features 750cc* injectors standard (this flow rate is based on industry injector flow test pressure of 43.5psi) at 72psi these injectors flow 1000cc. What this means is our kit is capable of supporting builds from 400whp up to 1,000whp out of the box.
(Aftermarket 2 piece charge pipe required)
*Actual flow rate may vary, as advertised flow rate is common average.
Specifications
Weight: 3.5lbs
Engine Compatibility: All Gen 1 and Gen 2 B58 Engines BMW/Supra
Injector brand: Genuine Bosch Motorsports
Advertised Flow - 750cc: 750cc @ 43.5psi , 1050cc @ 72.5psi
Advertised Flow - 950cc: 950cc @ 43.5psi, 1226cc @72.5psi
Fuel Compatibility: All known fuels including full E85 compatibility
Flow Matched: 2% or better (250% more accurate than off the shelf injectors)
Connection Type: EV6 (Called US Car Connector) works with AIC and JB4 Controller
Hardware included: Yes full stainless hardware included
Gasket Type: OEM Spec manifold gaskets (commonly found in BMW N54 applications)
Fuel Distribution Pattern: Diagonal equal distribution across all cylinders
Fuel Line: Smooth bore PTFE with stainless braid and nylon braid safe for all fuel types
